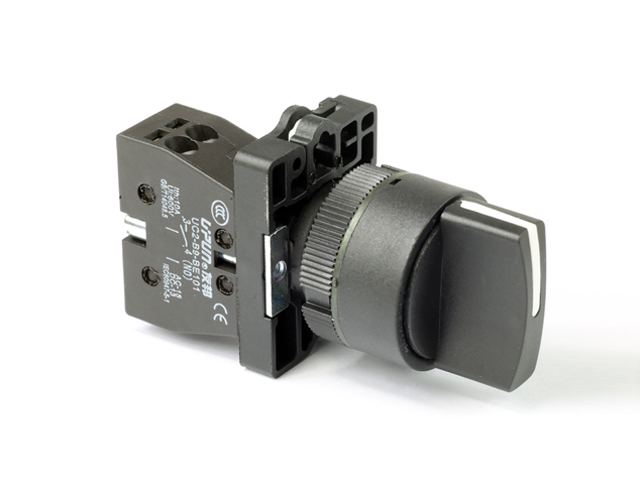

UC2-E9 Selector switch with short handle,2 positions
UC2-E9 Push-in plastic button has the characteristics of anti-vibration, high protection degree, fast speed of wiring and free maintenance . And it also has a wide range of environmental adaptability.
Product parameter
Parameter
Data
Standard
IEC/EN 60947-5-1, GB/T14048.1, GB/T14048.5-1
Standard usage status
Ambient temperature: -25 ~ +70℃，Environment humidity：45~ 85% Rh No ice and condensation Storage temperature: -40 ~ +70℃，Environment humidity：45~ 85% Rh No ice and condensation
Altitude
≤5000 meters
Anti-vibration
Mushroom-headed button: 8g，Other buttons and indicator light: 15g (40 Hz < Frequency < 500 Hz)，meetsIEC 60068-2-6
Anti-shock
Button: 70g，Mushroom-headed button : 15g，Selector switch: 200g，meets IEC 60068-2-27
Mechanical life
Button:3×106 ，“Emergency stop button :3×105
Protection degree
IP65
Rated value
~AC-15 : A600 or Ue = 240 V and le = 3 A = DC-13: Q600 or Ue = 250 V and le = 0.27 A
Related insulation voltage
Ui = 600 V，Pollution degree : 3, meets IEC 60947-1，Ui = 600 V
Related voltage of shock resistance
Uimp = 6 kV meets IEC 60947-1
Operation pressure
10A fusible core type(gl) meetsIEC 269-1,VDE 0660-200
Reliability
10A fusible core type(gl) meetsIEC 269-1,VDE 0660-200
Rated operation power
meets IEC 60947-5-1 appendix C.For AC-15 and DC-13.Operation frequency:3600 times/hour.Power factor: 0.5.
Terminal shape
Push-in terminal
Wiring
Multi-strand wire with tubular ends of 2×(0.5~1.5)mm².
